Herschel iQ JC1 Wired Thermostat
$199.00 ex. Tax
Herschel iQ JC1 Wired Thermostat
$199.00 ex. Tax
Key Features:
- 3.5″ color touchscreen
- 15 Amp wired thermostat
- 7 x 1 day programmable
- Temp control up to 40℃/104°F
- Optional internet control via WARRME App
- Compatible with Smart Life App
- Many other great features
Find Out More
-
Description
Description

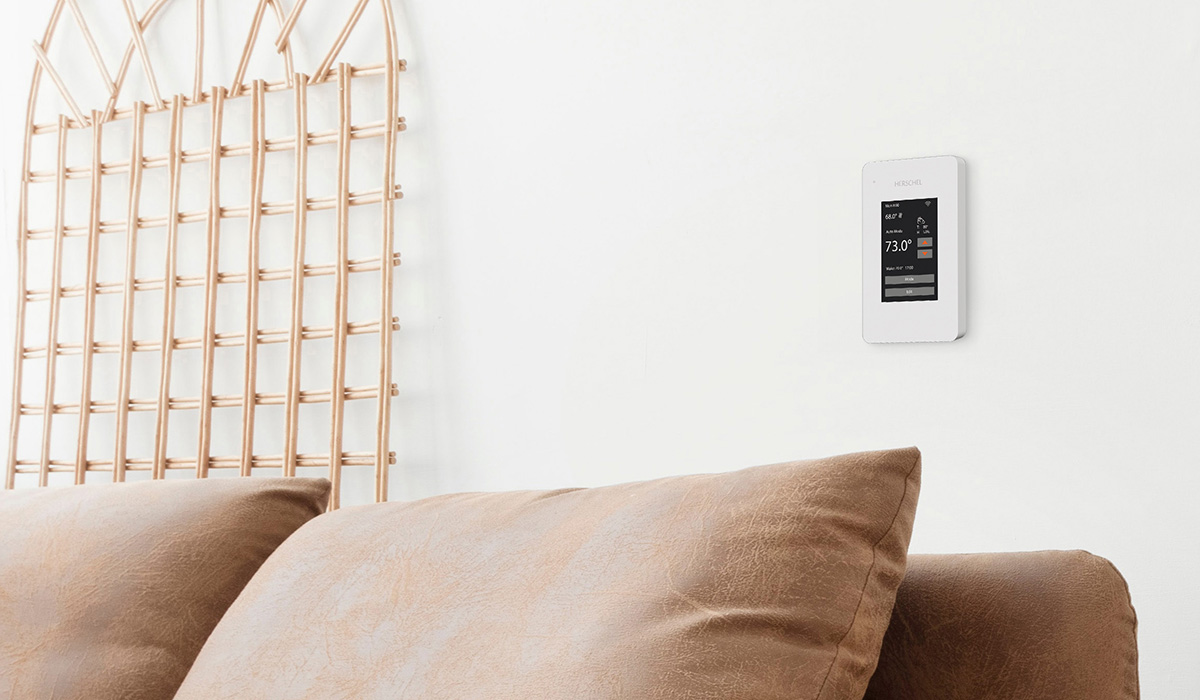

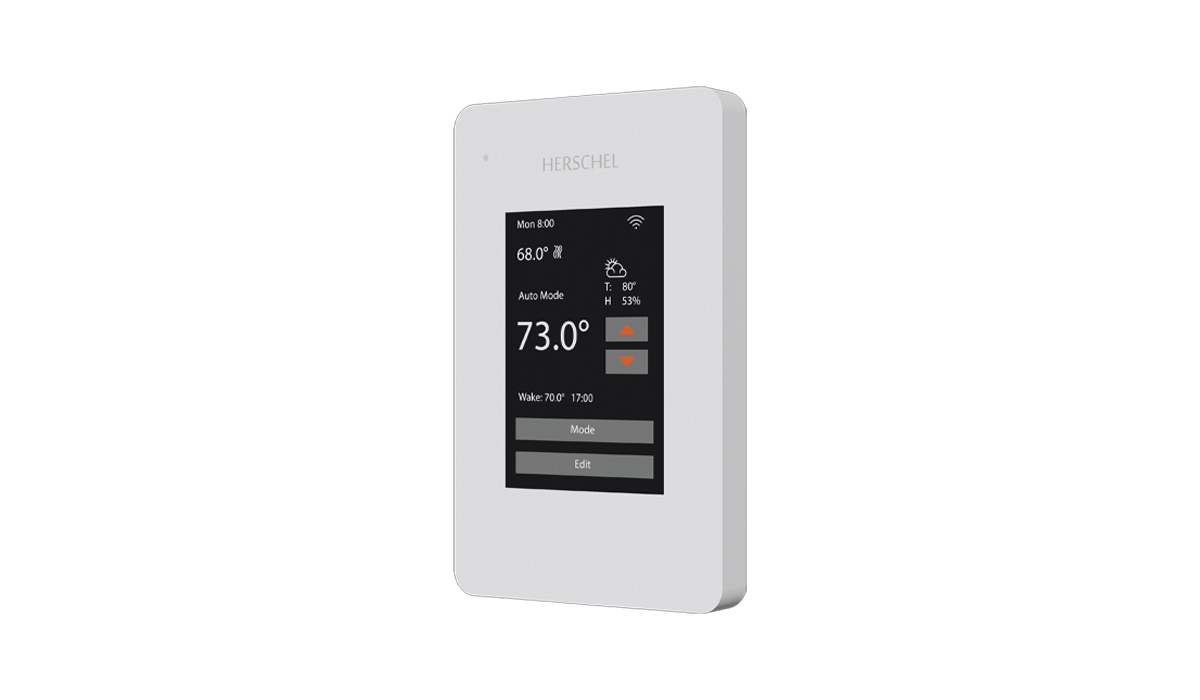

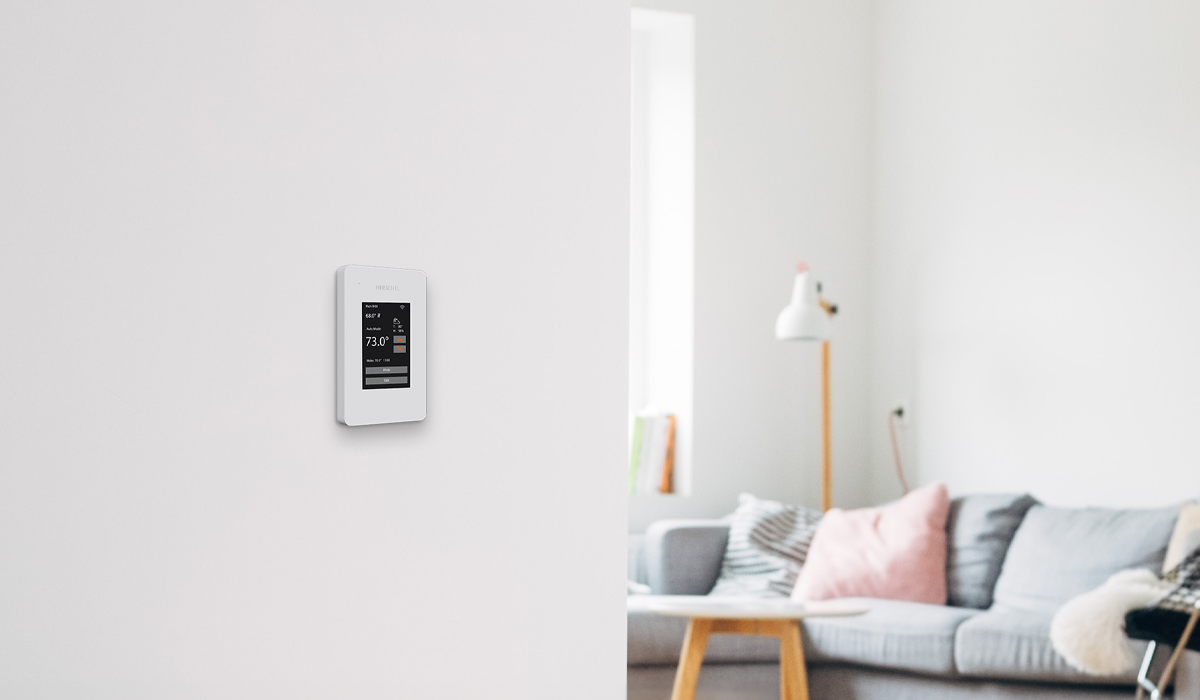

The Herschel iQ JC1 Wired Thermostat was designed for both comfort and convenience. Featuring a vibrant 3.5″ color touchscreen display, the JC1 is not only simple to operate but also a stylish addition to any room. The JC1 wired thermostat also features live weather updates on the display.

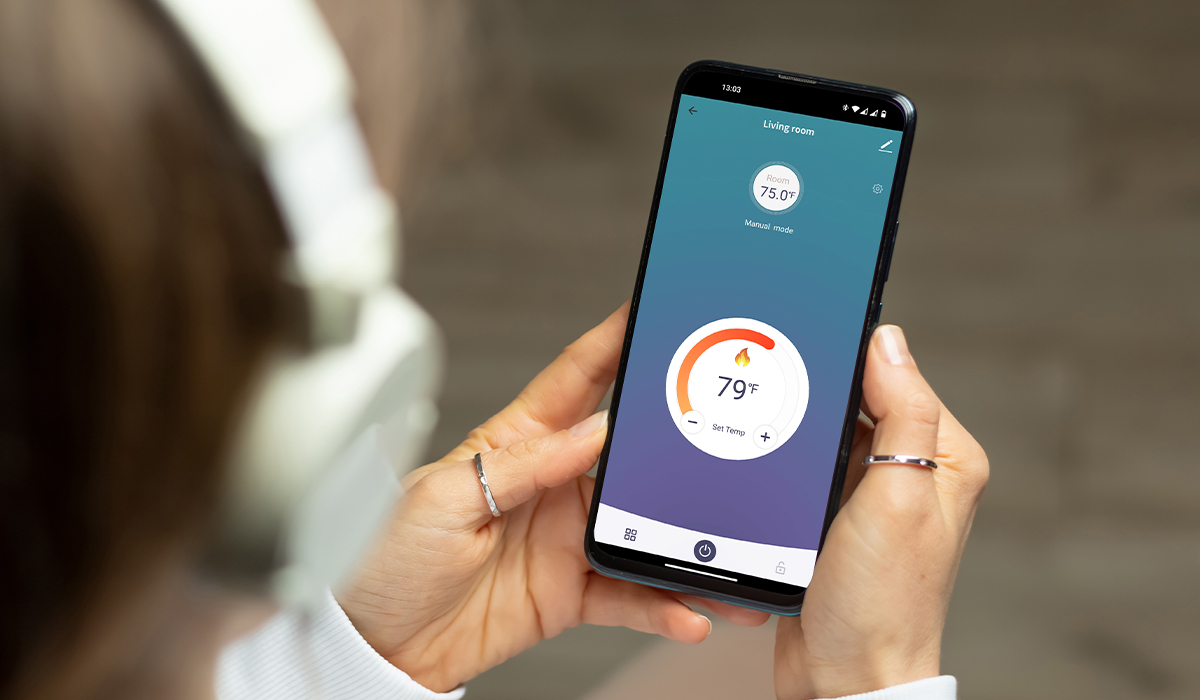

The JC1 wired thermostat can be controlled remotely using the WARRME App on your phone or tablet. The JC1 is also compatible with Smart Life for optimal convenience. The App-control also enabled controls of your heating by voice using Alexa or Google Assistant.
The JC1 thermostat will operate your Herschel heater(s) by turning them on if the room temperature is lower than the desired temperature and turning them off once the desired temperature is reached. The JC1 is easy to operate and incorporates the latest EcoDesign energy-saving features including Herschel’s open window technology.

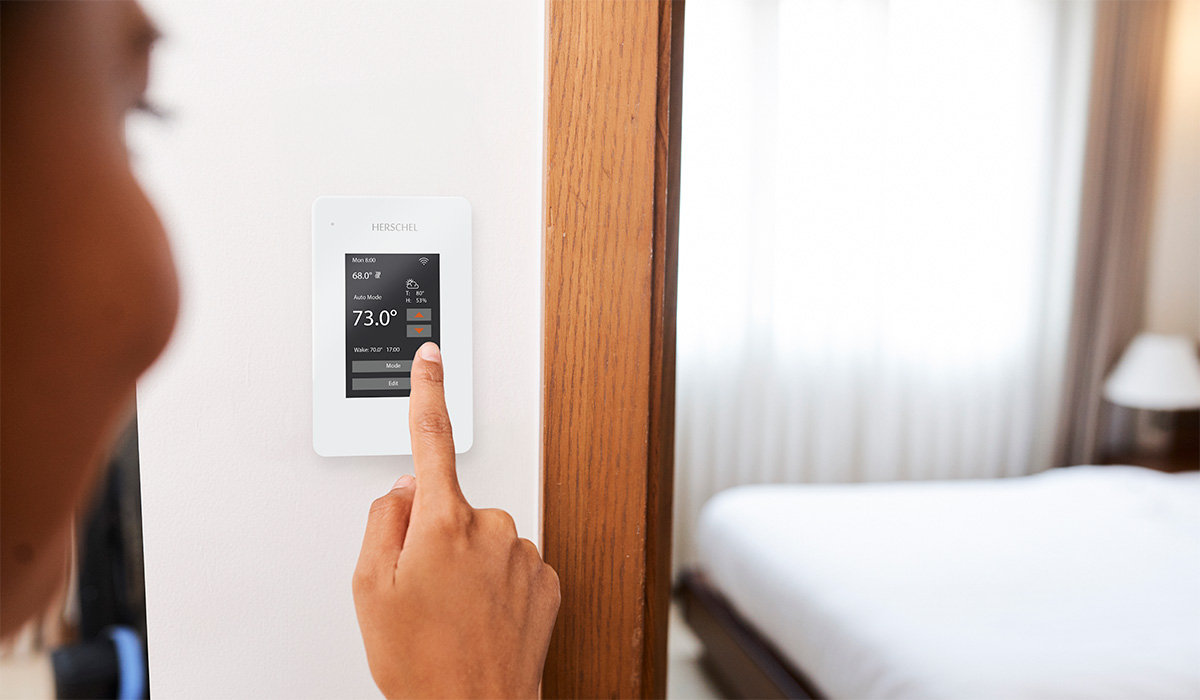

JC1 has a locking feature to prevent unauthorized tampering making it suitable for commercial applications such as hotels, care homes, student accommodation and let properties. The JC1 is a 15 Amp thermostat enabling up to 3.6 kW of Herschel heaters to be connected.
Note: Herschel iQ controls will only work with Herschel heaters. *Attempted use with any other heater brand will invalidate the warranty.
-
Technical
Technical Specifications
Surface: PC+ ABS to UL94 fire retardant plastic
Voltage: 120 - 240VAC 50/60Hz
Power Supply: Mains. 15A Peak Load.
Protection Class: IPX0
Installation: Wall-mounted
Setpoint Range: 41-104°F
Wifi Band: 2.4GHz
Programming: 7 day program, 4 periods per day
Energy Saving: Open Window, Adaptive Start, Energy Monitoring
App Control: WARRME App Control / Smart Life compatible
Voice Control: Works with Alexa and Google Assistant when paired with the App
Quality & Safety
UL / CSA Compliance: UL 60730-1, 60730-2-9 CAN/CSA E60730-1, E60730-2-9
Warranty: 5 Years
Note: Attempted use with any other heater brand will invalidate the warranty.
- Manuals and Guides
-
Controls / Accessories
Optional Accessories
-

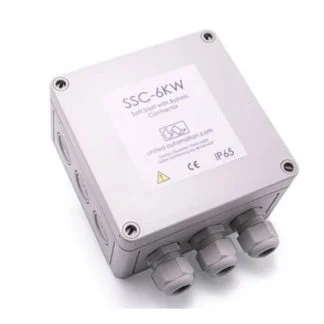

6kW Soft Start Controller
The 6kW Soft Start controller is designed to reduce the impact on heaters and electrical circuits of high startup currents that occur when full power to the heaters is switched on instantly.
High inductive loads or “Inrush currents” caused by switching on high power equipment instantly can cause damage to the heaters and can also cause nuisance tripping of circuit breakers. Using a soft start controller will eliminate nuisance tripping and prolong the heater’s life due to the gentler start-up time.
The controller works by gradually applying full power over 5 seconds after the current is first detected by the controller.
The unit can work passively by waiting until the current is detected and soft-starting the heater. This makes it ideal as part of a large installation of heaters where a central control such as a thermostat switches several heaters on and off and the soft-start just responds when it detects the current. Alternatively, a simple switch can be connected to the unit to activate the current directly to the unit, making it ideal for smaller or domestic installations where the heater can be switched on directly via the soft-start control. This gives operators a lot of flexibility in how they want to design and control their heating system.
-
-
