Inspire – Infrared Picture Panel

What size panel do I need?

use our
Watts Panel size cm Heated area
250 60 x 30 3 - 5 m2
350 90 x 30 4 - 7 m2
420 60 x 60 5 - 8 m2
550 80 x 60 7 - 12 m2
750 90 x 70 11 - 18 m2
900 100 x 80 13 - 22 m2
1200 120 x 80 17 - 29 m2

FROM $499.00


Finish (Gloss or Matt) *

Upload your own photo

Acceptable file types are TIF, JPG, PSD, PDF, EPS.
Minimum resolution must be 300 DPI and file size between 5 – 8 MB. (Note: this is minimum size recommended and for guidance only, the image quality must be suitable for size of panel).

(max file size 8 MB)

Frame *

Voltage *

Global Delivery
DIY Friendly
Reduce heating Cost
Highly energy efficient
10 yr Warranty
Zero maintenance


The Herschel Infrared picture panel heater is glass. Matt and Gloss finishes are both available. Please be sure to indicate your preference.

Picture panels come frameless as standard, but they can be fitted with a frame for a small extra charge.

Available in voltages: 120 and 230.

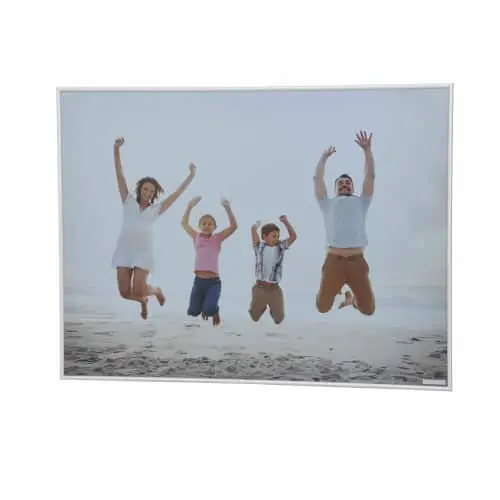

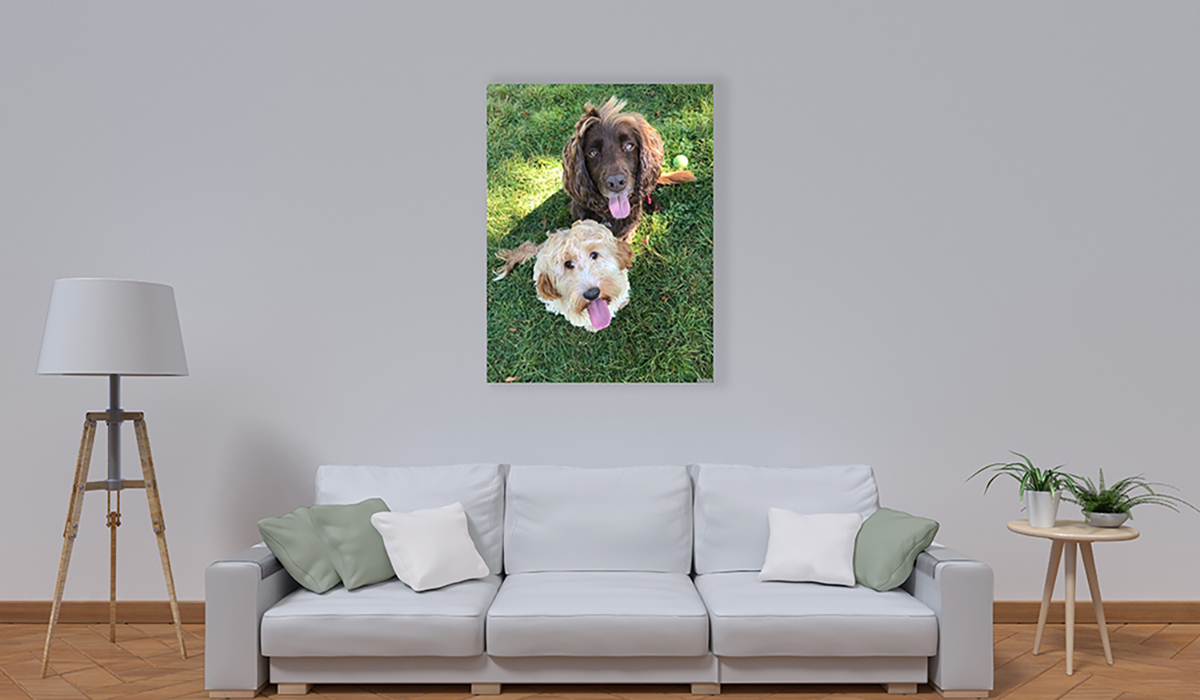

Customise your own panel with a family portrait or a favourite photo or even your child’s drawing or else choose from our own specially selected designs. Click on the link below to open our Data Sheet and see our selection of over 50 different designs. Companies often like to have heaters printed with their logos and Mission and Vision statements.

Available in seven different sizes and power outputs from 250 – 1200 Watts to suit every requirement, Herschel Inspire heaters operate at a fraction of the cost of traditional heating, but offer higher thermal comfort levels.

All units are made with ESG Safety Glass and manufactured in Germany from the highest quality materials and are guaranteed for 10 years.

Click here to download the Data Sheet.

Click here to download Installation & Operating Instructions.

The heated areas are a guide only and assume a medium to well insulated space with an average floor to ceiling height of 2.40M.  If room heights are greater or there are other building factors to consider then please contact us for a more exact quote using the Customer Service form or contact your dealer directly so that a more detailed assessment can be carried out.


Silver Matt is fitted as standard. You can choose “none” but the price remains the same as Silver Matt. All other frames carry a surcharge.

Model Part No. Picture
Silver matt – STANDARD AP-RA-7004 Silver matt frame
Silver shiny – OPTIONAL AP-RA-7003 Silver shiny frame
Brushed mercury – OPTIONAL AP-RA-7327 Brushed mercury frame
Gold shiny – OPTIONAL AP-RA-7001 Gold shiny frame
Black matt – OPTIONAL AP-RA-7021 Black matt frame
Walnut structured – OPTIONAL AP-RA-7318 Walnut structured frame

Technical Details

Field of application: Direct Heating
Surface: Glass with picture printed onto the surface (matt finish). Silver matt frame.
Colour: Printed, standard or custom motifs
Rear-panel: Sheet steel, powder coated, with mounting points
Surface temperature: 85-95°C
Cable: 3m power cable
Voltage: 120v 60Hz; 230v 50hz
Protection Class: IP54
Installation: Wall mounted

Quality & Safety

RoHS compliant

CE Certification (by TÜV Rheinland, Germany)

TÜV GS Certification (by TÜV Rheinland, Germany)

Made in Germany

Guarantee: 120 months

Inspire Global certifications
