Comfort – Infrared Ceiling Tile Heater
Key Features:
- Fits either 24×24″ or 24×48″ ceiling tiles
- Made in UK with British and European materials
- Swift Comfort Plus technology
- Highest quality German heating element
- Available in 120 and 240 volts

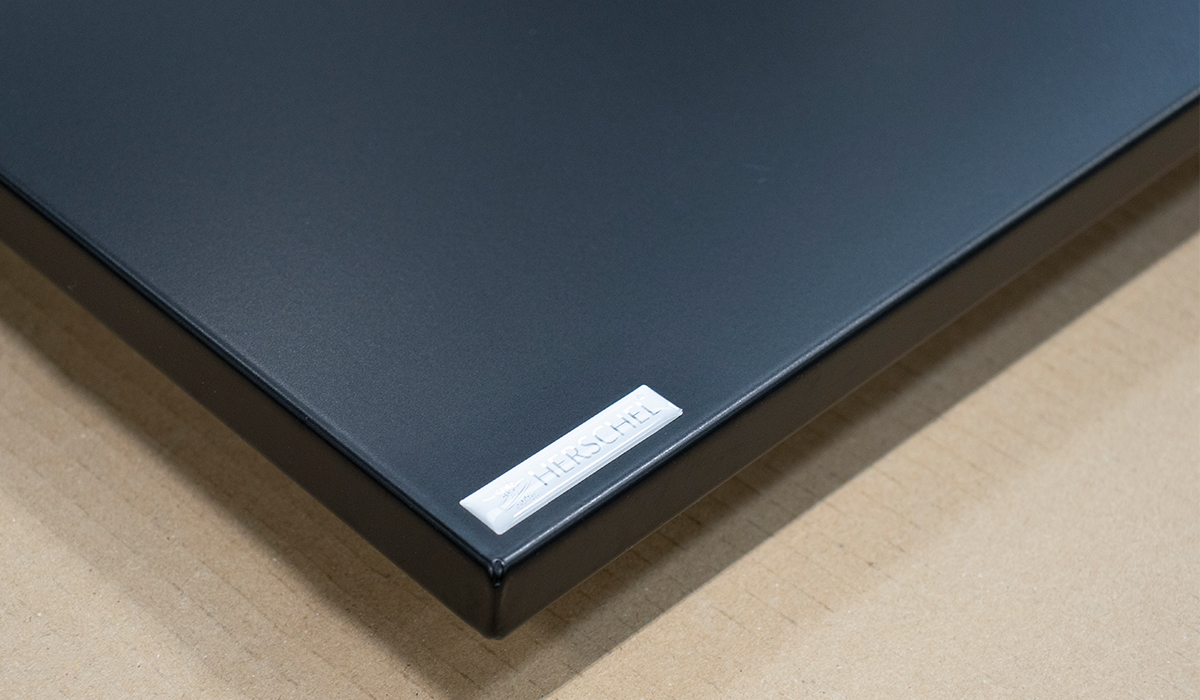

- Choice of white or black
- Use with Herschel iQ controls
Order now for 10 to 14 days delivery.
What Panel Size Do I Need?
How much wattage do you need?
Tell us a little about the room you're looking to heat and we'll recommend the best heating capacity for your needs.
| MODEL / WATTAGE | DIMENSIONS | HEATS FT² | PRICE | |
|---|---|---|---|---|
|

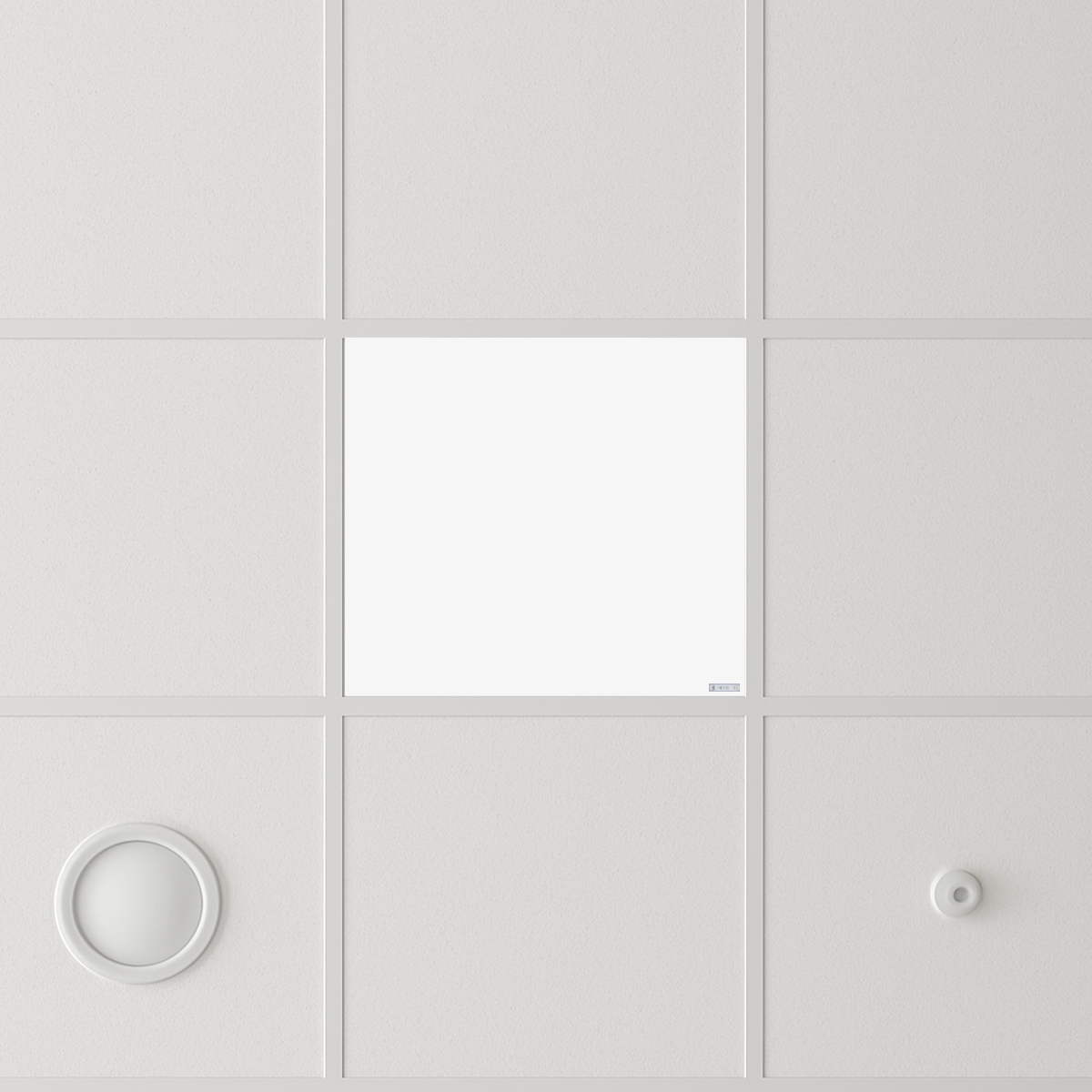

HC-420-120-US C 420W, 120V (3.4A) White |
24 x 24in |
65 - 85 |
$469.00 |
BUY
|
|
HC-420-120-US CB 420W, 120V (3.4A) Black |
24 x 24in |
65 - 85 |
$519.00 |
BUY
|
|
HC-420-240-US C 420W, 240V (1.7A) White |
24 x 24in |
65 - 85 |
$469.00 |
BUY
|
|

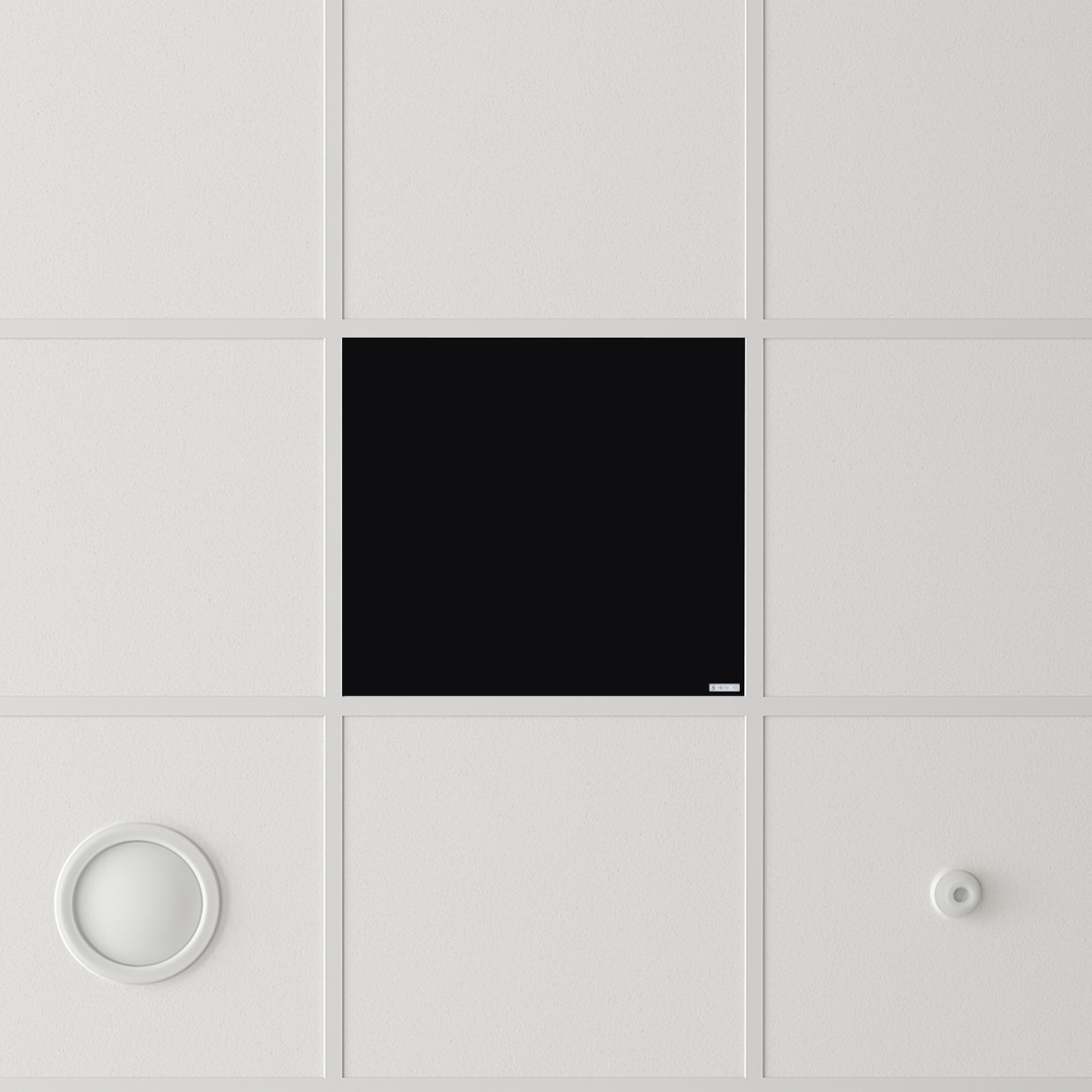

HC-420-240-US CB 420W, 240V (1.7A) Black |
24 x 24in |
65 - 85 |
$519.00 |
BUY
|
|

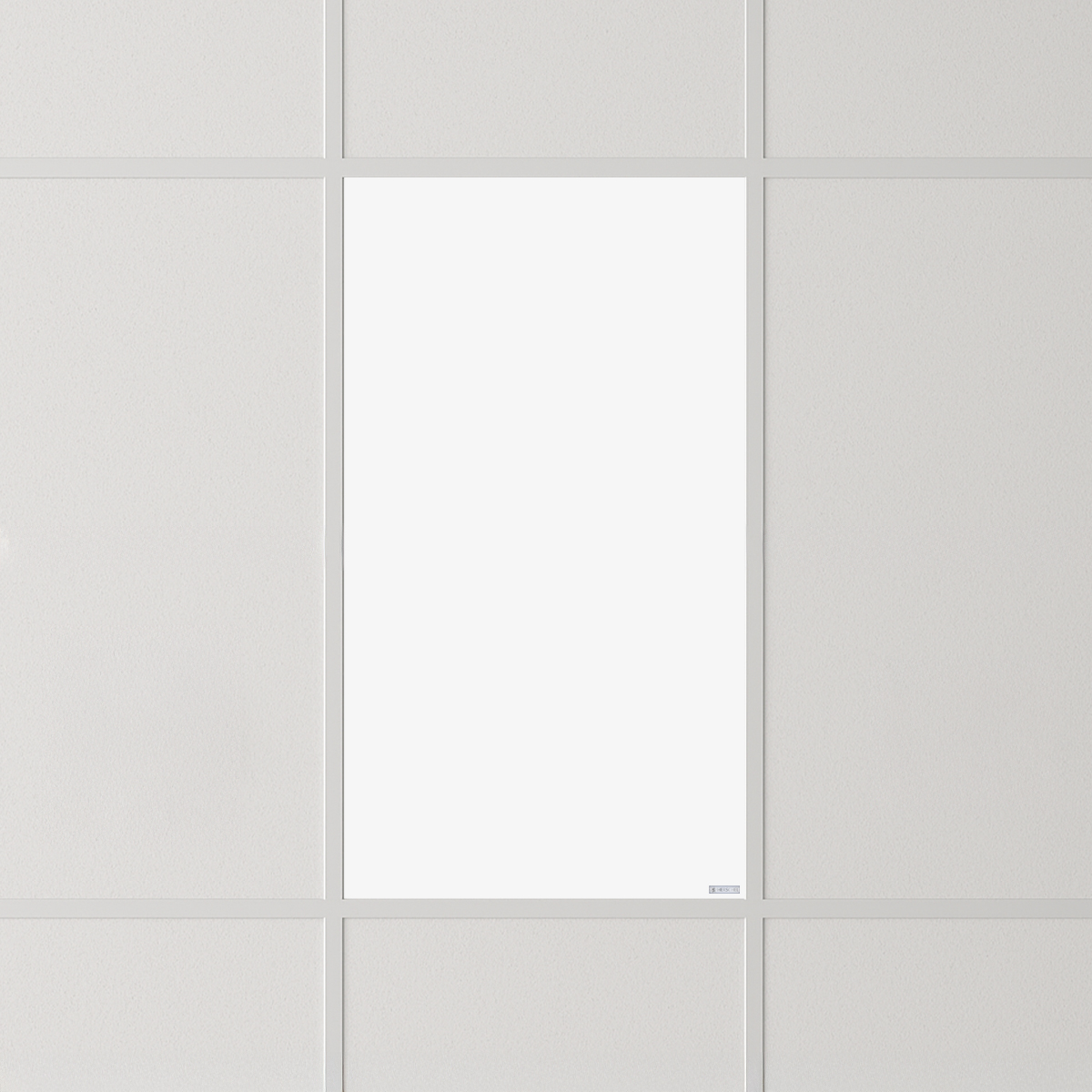

HC-850-120-US C 850W, 120V (6.3A) White |
24 x 48in |
113 - 194 |
$649.00 |
BUY
|
|
HC-850-120-US CB 850W, 120V (6.3A) Black |
24 x 48in |
113 - 194 |
$724.00 |
BUY
|
|

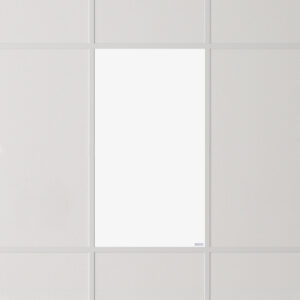

HC-850-240-US C 850W, 240V (3.2A) White |
24 x 48in |
113 - 194 |
$649.00 |
BUY
|
|

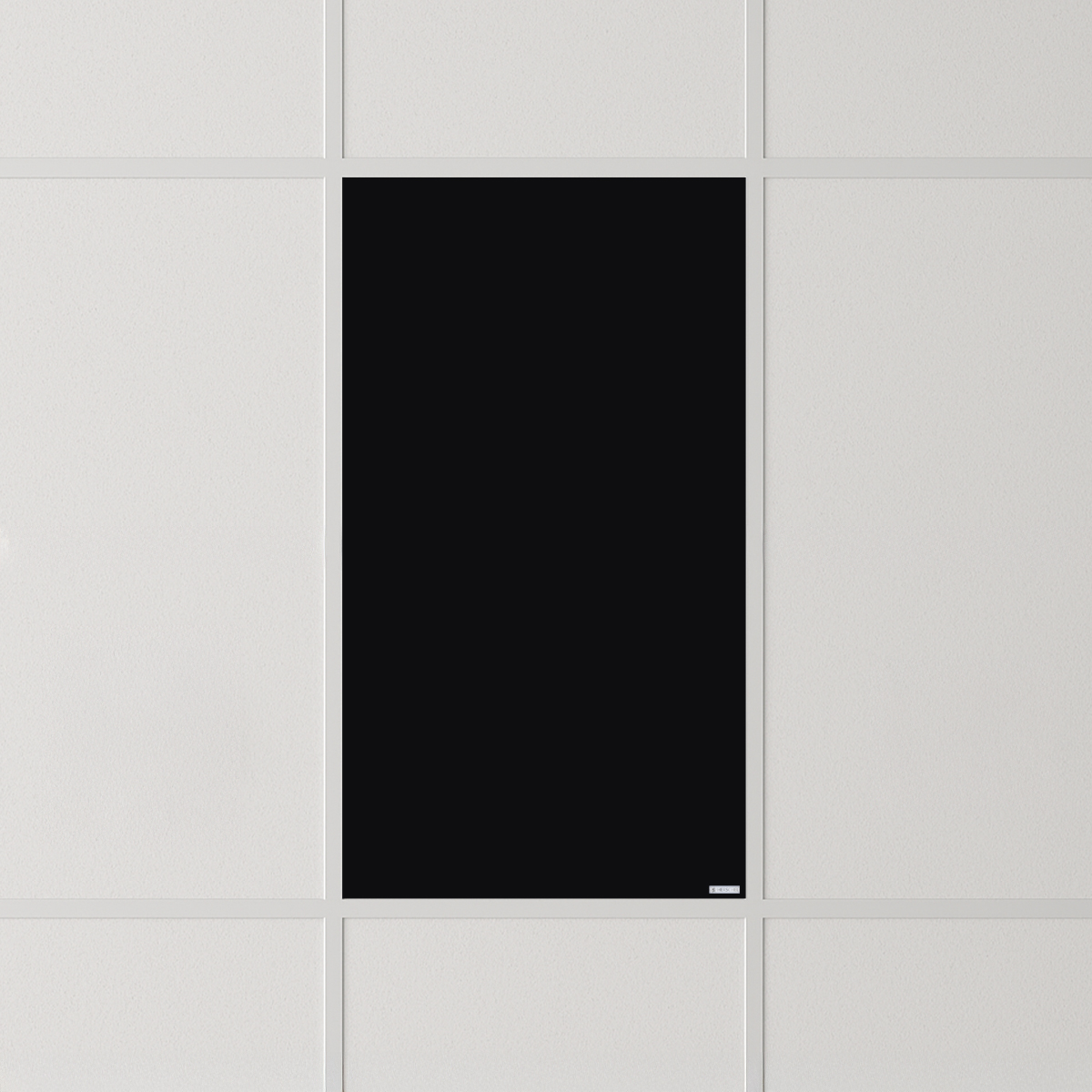

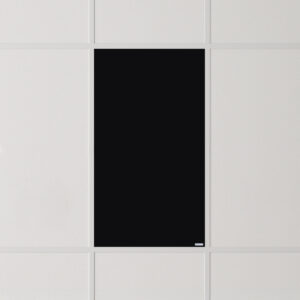

HC-850-240-US CB 850W, 240V (3.2A) Black |
24 x 48in |
113 - 194 |
$724.00 |
BUY
|
Find Out More
-
Description
Description

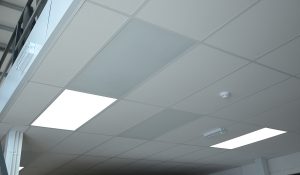

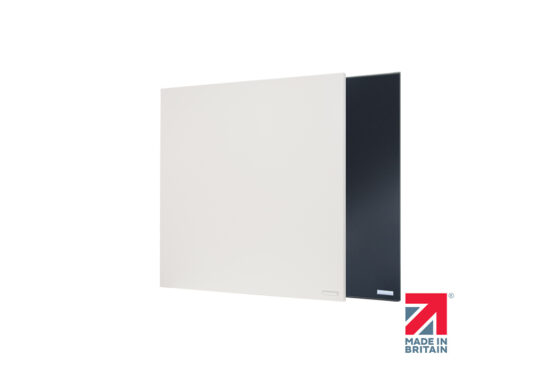

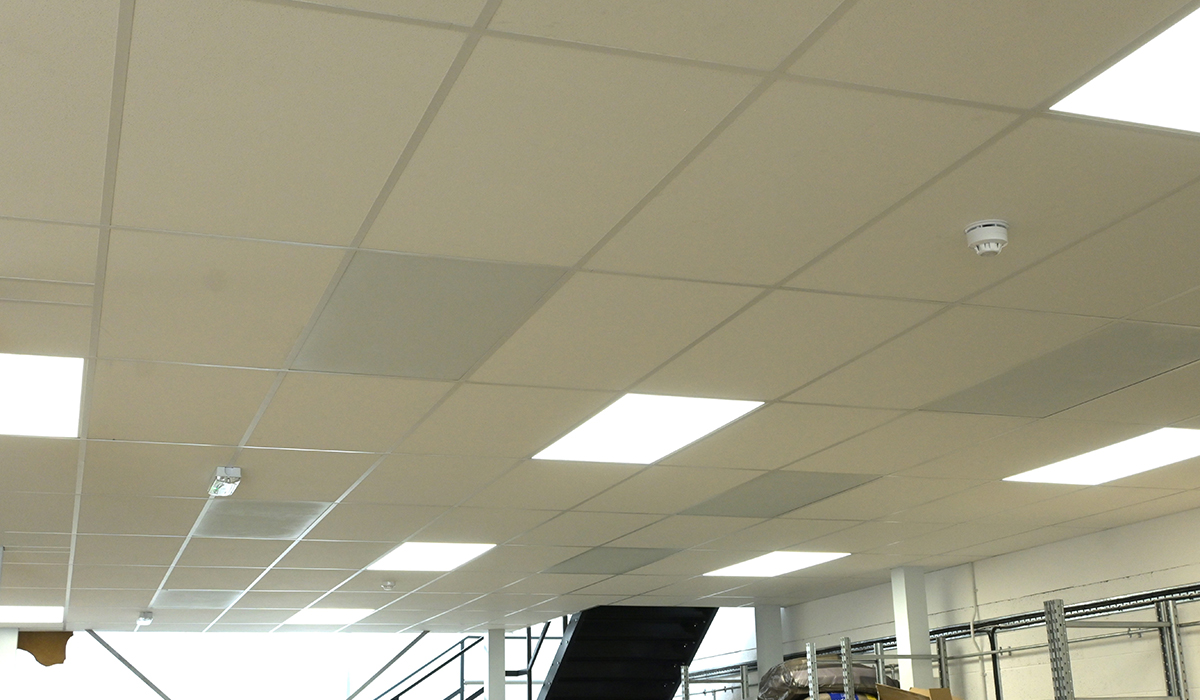

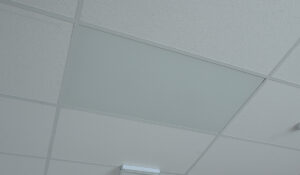

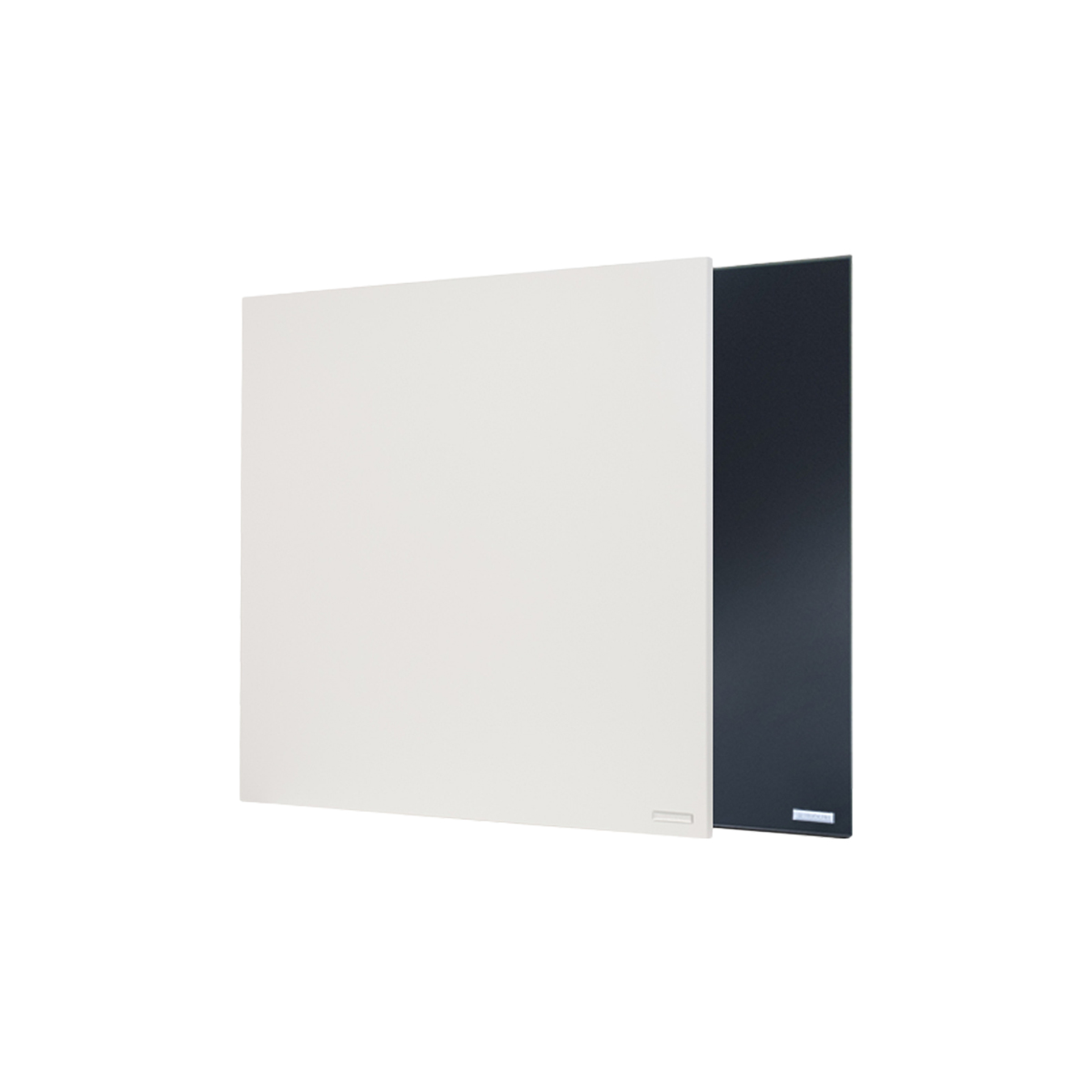

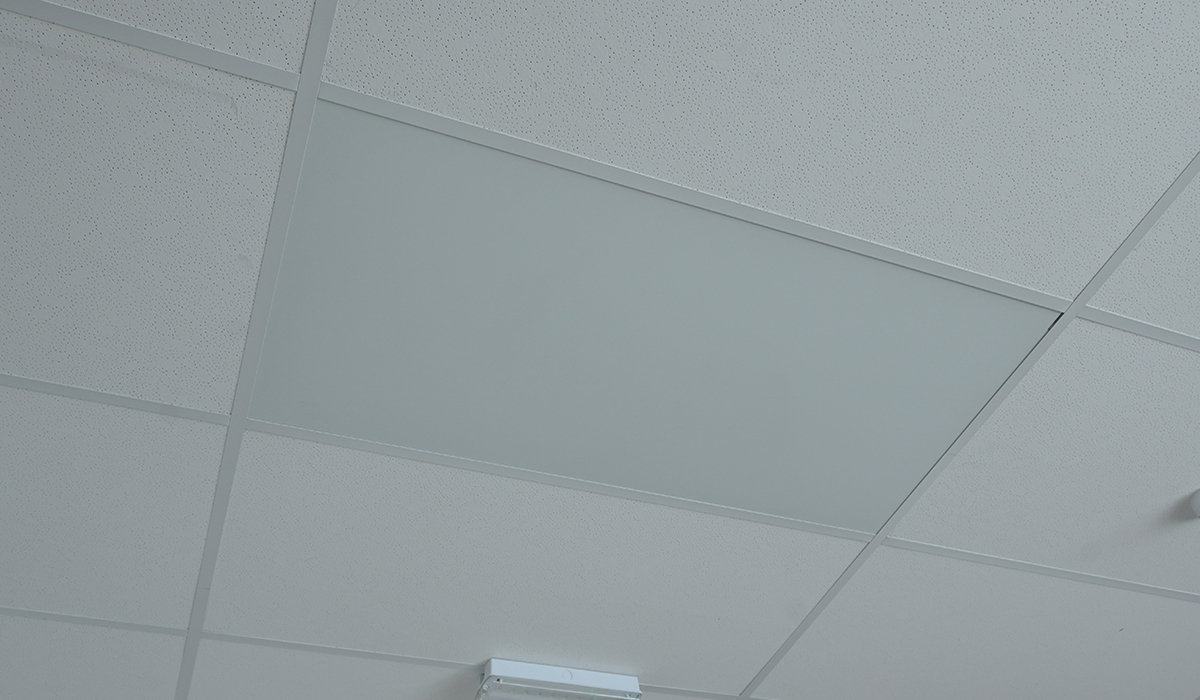

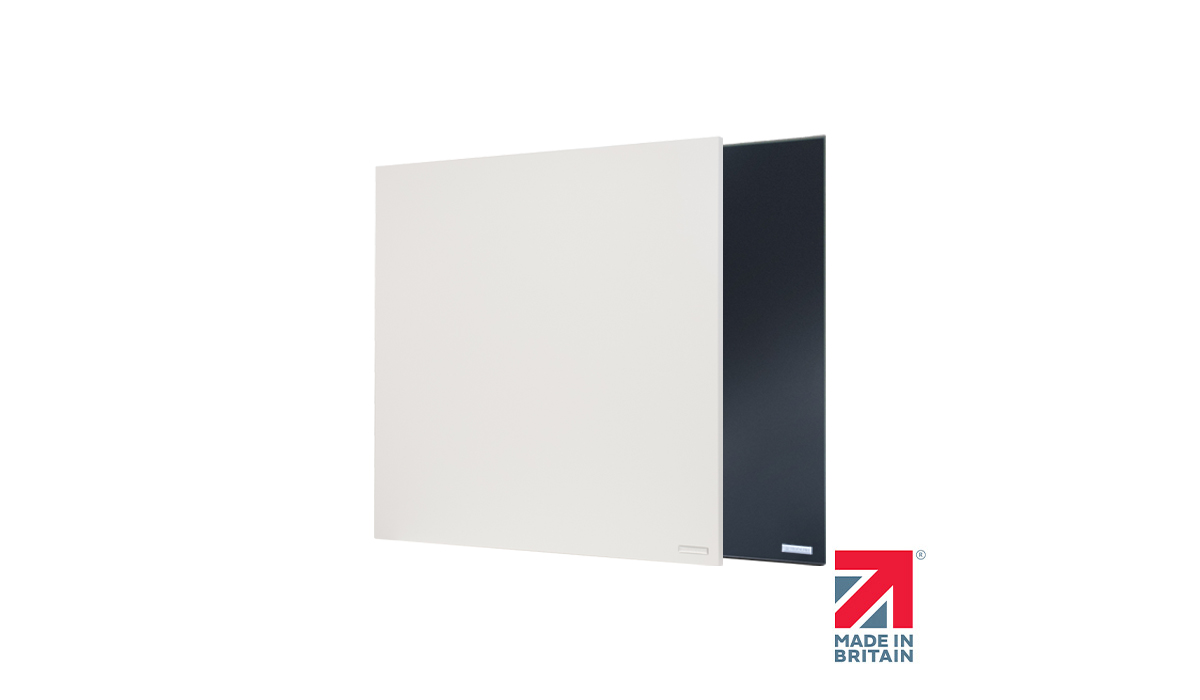

Our Comfort ceiling panels are designed to fit in either the 24×24″ (420W) or the 24×48″ (850W) ceiling grid tile spaces, offering a practical and space-saving heating option in shops, schools, hospitals and many other commercial spaces. Our Comfort infrared panel heater for ceiling tiles is fabricated and assembled in Britain to exacting standards using the highest quality German heating elements. This is a frameless panel made from a powder-coated steel emitting surface and incorporates our highly efficient long-life heating element. All panels are designed and built to last a lifetime and each panel is quality inspected and fully tested as part of quality control procedures. Complete with a 10-year warranty, panels are manufactured for either 120 Volts or 240 Volts power supply and designed to produce the optimum output of far infrared. The 420W panels can be fitted into 24 x 24″ ceiling grid tile spaces and the 850W panels can be fitted into the larger (Armstrong) 24 x 48″ tile spaces. The Comfort ceiling tile is also available in a choice of 2 colour finishes, white or black.
The Comfort Ceiling Tile heater comes with threaded inserts (blind rivnuts) to use with safety wires (not included) for use in the ceiling grid or ceiling-suspended. The Comfort infrared ceiling tile heater is intended for installation in a ceiling grid space only, or wire-suspended, and cannot be surface-mounted on a ceiling. For surface-mounting panels on a ceiling, please use the Comfort white panels.
Featuring Herschel’s innovative Swift Comfort Plus system, the Comfort ceiling tile heaters offer a faster warm-up experience and improved efficiency. Swift Comfort Plus includes our new high performance, long life German made heating element which heats up to higher temperatures extremely quickly from startup and delivers an optimum spread of heat across the surface of the panel.
Comfort panels are designed for professional installation only and must be controlled with our Herschel JC1 mains powered thermostat (sold separately). Full App control is available when used with JC1.
The heated areas are a guide only and assume a medium to well-insulated space with an average floor to ceiling height of 95 inches. If room heights are greater or there are other building factors to consider then please Contact Herschel, or contact your dealer directly so that a more detailed assessment can be carried out.
-
Technical
Technical Specifications
Heater Type: Fixed electric low temperature infrared heater
Surface: Steel Sheet, powder coated
Colour: White or Black, RAL Code: 9016 or 9005
Rear Case: Annealed Stainless Steel
Surface Temperature: 203 - 230°F
Cable Length: 72in
Plug: Moulded plug
Voltage: 120 - 240V 60Hz
Protection Class: Indoor Use Only
Installation: Ceiling hung
Warm-up Time: 7 Minutes
Useful Wavelength: 5 - 12µm
Quality & Safety
UL / CSA Compliance: UL 1278:2014 Ed.4+R:21Feb2022, CSA C22.2#46:2013 Ed.9
UL / CSA File Reference: 304447
Warranty: 10 Years
- Manuals and Guides
-
Controls / Accessories
Control Options (Required)
-
Herschel iQ JC1 Wired Thermostat
The Herschel iQ JC1 Wired Thermostat was designed for both comfort and convenience. Featuring a vibrant 3.5″ color touchscreen display, the JC1 is not only simple to operate but also a stylish addition to any room. The JC1 wired thermostat also features live weather updates on the display.
The JC1 wired thermostat can be controlled remotely using the WARRME App on your phone or tablet. The JC1 is also compatible with Smart Life for optimal convenience. The App-control also enabled controls of your heating by voice using Alexa or Google Assistant.
The JC1 thermostat will operate your Herschel heater(s) by turning them on if the room temperature is lower than the desired temperature and turning them off once the desired temperature is reached. The JC1 is easy to operate and incorporates the latest EcoDesign energy-saving features including Herschel’s open window technology.
JC1 has a locking feature to prevent unauthorized tampering making it suitable for commercial applications such as hotels, care homes, student accommodation and let properties. The JC1 is a 15 Amp thermostat enabling up to 3.6 kW of Herschel heaters to be connected.
Note: Herschel iQ controls will only work with Herschel heaters. *Attempted use with any other heater brand will invalidate the warranty.
-
Herschel iQ RM1 Wired Thermostat
The Herschel iQ RM1 Wired Thermostat is a fixed, wall-mounted thermostat ideal for controlling Infrared Panel Heaters where you want the power cables to be neatly hidden behind the walls or plasterboard. The control is fully UL & CSA approved for domestic and commercial use.
When used in conjunction with your wifi network and the Smart Life app, RM1 can also be controlled remotely via the internet, enabling you to manage your heating when you are away from the building. The Smart Life App also enables control of your heating by voice using Alexa or Google Assistant.
RM1 is wired directly to the mains circuit and the heaters and handles both 120V and 240V loads to a maximum of 15 Amps.
The RM1 thermostat will operate your Herschel heater(s) by turning them on if the room temperature is lower than the desired temperature and turning them off once the desired temperature is reached. The RM1 is easy to operate, features a large backlit digital display, and incorporates Open Window detection and Energy Monitoring.
RM1 has a keypad locking feature to prevent unauthorized tampering making it suitable for commercial applications such as hotels, care homes, student accommodation and let properties.
Note: Herschel iQ controls will only work with Herschel heaters. *Attempted use with any other heater brand will invalidate the warranty.
-
-
